2026 Sport Haven AUT610 - J6517
Get in Touch
Description
2026 Sport Haven AUT610
Secure your adventures like never before with Sport Haven Trailers' innovative Connect Tie Down Track™—a game-changing system engineered for ultimate cargo confidence on the road.
The Connect Tie Down Track features holes every 12" along the Integrated frame rails where double stud tie downs attach.
Single axle trailers come standard with 4 tie downs included, Tandem Axle trailers come with 6
Features may include:
Construction Specs
- Fluted Aluminum Tube Tongue, Tongue Supports, Frame & Crossmembers
- 2" Wide Top Deck Rail
- 2" x 2" Top Deck Rail Uprights
- 5/4" x 6" ProWood DuraColor Decking
- All Aluminum 4' Rear Ramp
Component Specs
- LED Lights
- 15" Silver Powder Coated Wheels
- ST207/75R15C Radial Tires
- 3,500 lb Capacity Axles
- Double Eye Spring Suspension
- 3,500 lb Capacity Zinc Plated Couplers
- 3,200 lb Capacity, 27" Safety Chains

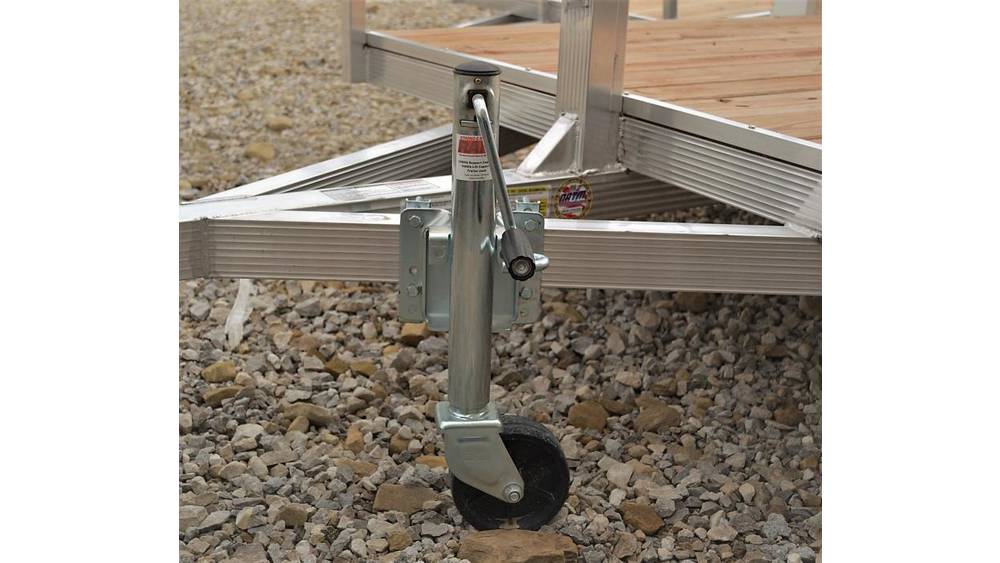

- 1,200 lb capacity Swivel Wheel Jack
Misc Specs
- 4-Way Flat Wiring Harness
- 2" Ball
- 14" Hitch Height
- 17" Deck Height
- 13" Rail Height Above the Deck
- 2,990 lb Gross Vehicle Weight Rating (GVWR)
Optional
Popular Options:
- Aluminum Treadplate Sides
- Aluminum Wheel Upgrade
- Lateral 5' Ramp (7' Wide Models)
- Bi-fold Ramp (Rear and/or Side)
- Trailer Brakes (Standard on Tandem Axle, Optional on Single Axle)
AUT-LR:
- Aluminum Ramps built into siderails
- Aluminum Wheel Upgrade
- Side Load from either side
- Built in Spare tire mount holes (kit sold separately)
- ProWood DuraColor Decking
- AUT712, AUT714, AUT714T thru AUT724T
Dealer Notes
Deck (Length/Width)120 / 72
Overall (Length/Width)162 / 90
Crossmembers 24 On-Center
3 Tube Frame
Deck Height 17
Rail Height (above deck)13
4' Rear Ramp
GVWR 2990 lb.
Curb Weight 580 lb.
Payload Capacity 2510 lb.
Hitch Height 14
STANDARD Features:
NATM Certified
Extruded Aluminum Tube Frame: Durable Lightweight
A-Frame Tongue for Superior Support
3-Year Structural Warranty
1750 lb Capacity on Ramp
LED Lighting
Sealed Plug and Play Wiring Harness
15 Radial Tire
Dexter 3500 lb. 4 Drop Spring Axle
1000 lb. Swivel Jack w/wheel
5/4x 6 Pro Wood Dura Color Treated Decking
Spring Loaded Gate Latch
Aluminum Greaseable Hinge
4 Tie-Down Points (6 on tandems)
OPTIONAL Features:
Spare Tire Mount
Side Loading Ramp (5' wide)
Bi-Fold Ramp (Rear and/or Side)
Trailer Brakes
Aluminum Rim Upgrade
Flush Mount D-rings
Info
Industry
Trailer
Make
Sport Haven
Model
AUT610
Trim
Base
Year
2026
Price
3600.00
Stock Number
J6517
Category
Landscape/Utility
Subcategory
Landscape/Utility
Condition
New
Location
Jim's Trailer World Inc.
Color
Aluminum
Hitch Type
A-Frame
Length
10' 0"
Width
6' 0"
Gvwr
2990
Payload Capacity
2410
Specifications
GVWR
2,990 lbs
Length
Deck: 120 in | Overall: 162 in
Width
Deck: 72 in | Overall: 90 in
Height
Deck: 17 in
Frame
Outer Rails: (2) 2 in x 4 in Fluted
Crossmembers
Front & Rear: (2) 3 in x 4 in Fluted | Middle: (4) 1.75 in x 3 in Fluted
Uprights
2 in x 2 in Top Deck Rail
Dry Weight
Curb: 580 lbs
Hitch Height
14 in
Tires
ST207/75R15C
Suspension
Double Eye Spring
Tongue
(1) 3 in x 3 in Fluted | Supports: (2) 1.75 in x 3 in Fluted
Ramps
All Aluminum 4 ft Rear
Coupler
3,500 lb Capacity Zinc Plated
Axles
3,500 lb Capacity
Wheels
15 in Silver Powder Coated
Safety Chains
3,200 lb Capacity, 27 in
Lights
LED
Max Load
Payload Capacity: 2,410 lbs
